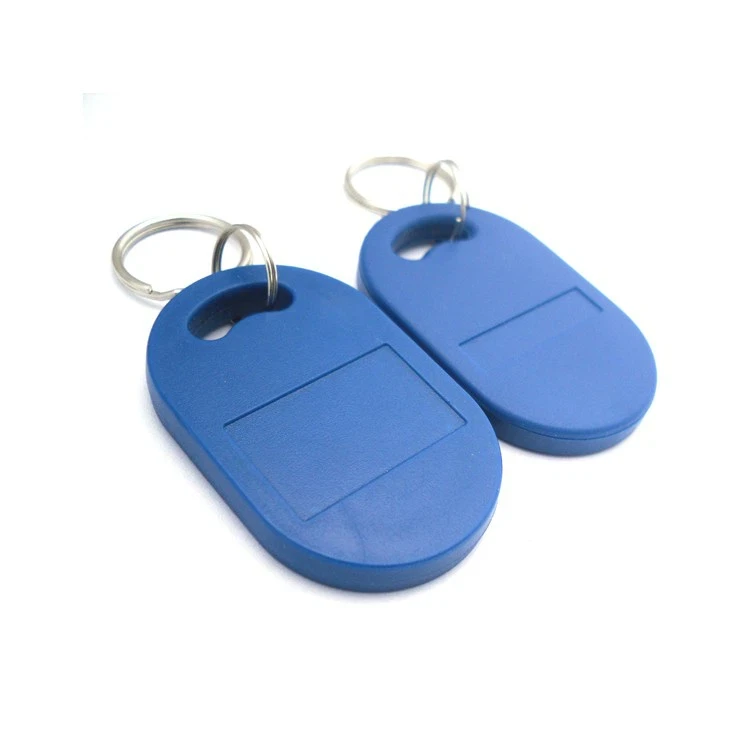

13.56MHz Mifare Classic 1K RFID Keyfob

Product name：13.56mhz Mifare Classic 1k Rfid Keyfob
Frequency:13.56mhz
Chip:F08
Application:Access control

Send Inquiry

Chat Now

Technical Specifications

Housing: High-impact ABS, ultrasonic welded, IP67 waterproof & dustproof
Standard colors: Blue, Green, Yellow, Red, Black, White (custom Pantone colors accepted)
Dimensions: 40 × 32 × 4.2 mm (total length with steel ring ≈ 75 mm)
Memory: 1KB EEPROM
Structure: 16 sectors × 4 blocks × 16 bytes
Authentication: Independent Key A / Key B per sector
UID: Factory-burned 4-byte or 7-byte unique ID (non-modifiable)
Read range: 3–10 cm (depending on reader)
Data retention: > 10 years
Write endurance: ≥ 100,000 cycles
Operating temperature: -30 °C to +75 °C
Available processes: Silkscreen printing, laser engraving serial numbers, epoxy drop, pre-encoding, metal ring assembly

Comparison Table (Real-world Customer Concerns)

Feature	Traditional Metal Key	125 kHz Low-Frequency Fob	This F08 Mifare Classic 1K Keyfob
Operation	Physical insertion	Touch or very close	Non-contact up to 10 cm
Duplication difficulty	Extremely easy	Medium	Extremely high (UID + dual-key encryption)
Lost key handling	Replace entire lock	Delete card ID one by one	Disable instantly in software
Payment / consumption	Not possible	Rarely supported	Native support (canteen, vending, transit)
System integration	None	Basic	Works with Hikvision, Dahua, ZKTeco, etc.
Physical durability	Prone to wear & rust	Average	Almost zero mechanical wear

Production & Quality Process

1.Send artwork or select model → 2. Samples ready in 48 hrs → 3. Pre-production sample approval → 4. Mass production → 5. 100 % function + visual check → 6. Anti-static packaging → 7. Shipment

Every bulk order includes:

Pre-production physical samples with test report
Full UID list in Excel
Encrypted key files (deleted after writing)

Customization Options

Sequential or random UID numbering
Pre-write data in any sector (employee ID, balance, etc.)
Unified keys or unique keys per card
Logo printing (silkscreen or laser)
Epoxy resin coating for premium look
Anti-metal version available

Ordering & Delivery

MOQ: 100 pcs (mixed colors OK)
Payment: PayPal/Alipay for samples, 50 % T/T deposit + 50 % balance
Lead time: ≤ 1,000 pcs → 7 working days; ≤ 10,000 pcs → 12 working days
Shipping: DHL/FedEx/UPS door-to-door (8–12 days) or economical sea + delivery

13.56mhz Mifare Classic 1k Rfid Keyfob

Frequently Asked by Corporate Buyers

01.Will these keyfobs work with Hikvision, Dahua, or other access control systems?

Yes, absolutely! Our MIFARE Classic 1K keyfobs are fully compatible with major systems like Hikvision, Dahua, ZKTeco, and most standard 13.56MHz ISO14443A readers. They operate at the standard frequency and protocol used by these brands. If you're integrating with a specific model, we recommend testing a small sample batch first (we offer free samples for qualified buyers). Just let us know your system details, and we can confirm compatibility or provide pre-encoded fobs tailored to your setup.

02.How secure are the keys and data on these keyfobs?

Our keyfobs use the genuine NXP MIFARE Classic 1K chip with sector-based Key A/Key B authentication and factory-burned unique UIDs (4-byte or 7-byte, non-modifiable). This provides a good level of security for many access control, attendance, and low-value payment applications. Duplication is difficult without knowing the sector keys, and lost fobs can be immediately disabled in your system software.

That said, as manufacturers, we want to be transparent: the MIFARE Classic encryption (Crypto-1) is an older standard and has known vulnerabilities that allow advanced attacks in lab conditions. For standard everyday use (e.g., office/building access), it's reliable and widely deployed worldwide. If your project requires higher security (e.g., financial transactions or high-risk environments), we recommend upgrading to MIFARE DESFire or MIFARE Plus chips-we offer those alternatives as well. We're happy to guide you on the best option.

03.Can we lock certain sectors and leave others open for our own consumption system (e.g., canteen or vending)?

Yes, this is one of the key advantages of MIFARE Classic 1K! The chip has 16 independent sectors, each with its own Key A and Key B. We can pre-program unified keys across all fobs, unique keys per fob, or customize access conditions-locking some sectors for access control while leaving others writable for your internal applications like balance top-ups. Just provide your requirements during ordering (e.g., which sectors to lock/open and desired keys), and we'll handle the pre-encoding at no extra setup cost for bulk orders.

04.What is the defective rate for these keyfobs?

Our defective rate is extremely low-typically under 0.1% based on our in-house testing and customer feedback over years of production. Each fob undergoes full ultrasonic welding, chip functionality testing, and quality checks before shipping. In the rare case of any defects, we offer a straightforward replacement policy: simply contact us with photos or details, and we'll ship replacements free of charge.

05.Can you match an existing keyfob shape exactly (custom mold)?

Yes, we specialize in customization! We can replicate most existing shapes using custom molds (minimum order quantity applies, usually 5,000–10,000 pcs depending on complexity). We also offer standard shapes with modifications like epoxy coating, metal rings, or anti-metal layers. Send us a sample or detailed drawing, and our engineering team will provide a quote and prototype within 7–10 days.

06.What certifications do these keyfobs have?

Our MIFARE Classic 1K keyfobs are produced under ISO 9001 quality management, and materials comply with RoHS, REACH, and CE standards. The chip itself is original NXP with full ISO14443A compliance. If you need specific certifications (e.g., IP67 test reports), we can provide documentation upon request.
