Syntek 125kHz EM4100 TK4100 RFID Key Fobs for Access Control

Syntek 125kHz EM4100 TK4100 RFID Key Fobs for Access Control

Model: 2
Sample: Free (stock sample)
Chip: 125khz TK4100/EM4100
Products Name: RFID Keyfob
Send Inquiry
Chat Now

125kHz RFID EM4100 TK4100 Key Fob Specifications at a Glance

Housing Material ABS
Working Frequency 125kHz (LF)
Chip TK4100 or EM4100
Memory 64 bits, read-only (unique ID, not writable)
Dimensions 35 × 28 × 7 mm (1.37" × 1.1" × 0.27")
Operating Distance 2–5 cm
Working Life > 100,000 times
Working Mode Passive, no battery
Operating Temperature -40℃ ~ 75℃
Storage Temperature -50℃ ~ 80℃
Colors Black, yellow, white, grey, purple, etc., or customized
Packing 50 pcs/bag, 2,000 pcs/carton
Sample Free (stock sample)

Front, back and side views. The fob is 35 mm tall and 7 mm thick, with a 7.7 × 3.6 mm slot for the key ring.

Want to check these figures on your own readers first? Ask for a free stock sample and test it before you place a bulk order.

Dimension drawing of the ABS 125kHz proximity key fob

Read-Only 125kHz Proximity Fobs Built for Enroll-Once Access Programs



Each fob carries a 64-bit unique ID that is set at the chip and cannot be rewritten, so the number you enroll on the first day is the number your system reads for as long as the fob is in use. That makes it a simple, predictable credential for apartment doors, office turnstiles and attendance terminals running on 125kHz readers.



Choosing between EM4100 and TK4100 is easy. Both chips work at 125kHz with the same read-only 64-bit memory and come in the same ABS shell, so you can follow whatever chip your reader or tender asks for without changing the look of the fob your users carry. There is no battery to fail or replace, which keeps the cost of a large rollout down to the fob itself.



Why Wholesale Buyers Choose These EM4100 and TK4100 Key Fobs

One housing, two chip options

The EM4100 and TK4100 versions share the same size, shape and color range. If one project specifies EM4100 and the next asks for TK4100, your packaging, user guides and stock photos stay the same.



An ID nobody can change

Because the UID is not writable, an enrolled fob cannot be reprogrammed into someone else's credential. Your access records stay clean from first issue to the day the fob is retired.



Over 100,000 reads, no battery

Passive operation and a rated life above 100,000 reads mean years of daily use. In practice, you reorder for lost fobs and new users, not because old ones wore out.





Pick the right 125kHz chip in one step



If your project needs Choose
A fixed ID that can never be changed in the field TK4100 or EM4100 (read-only)
Fobs you can program or re-encode on site T5577, EM4305 or Hitag (read & write), see our T5577 ABS RFID key fob
13.56MHz or UHF readers instead of 125kHz See the HF and UHF chip list in the customization section below

Sourcing for a tender or a repeat program? Syntek ships free stock samples of its 125kHz key fobs in 1–5 days, so your team can test them on site before you commit to volume.

Get Syntek 125kHz Key Fob Pricing

Contract-Grade ABS Key Tags Built for Daily Keyring Use

Blue, grey and yellow ABS RFID key tags on metal rings

Hard shell that lives on a keyring

The chip and antenna are sealed inside a 35 × 28 × 7 mm ABS housing that rides comfortably next to metal keys. A rigid fob handles pockets, bags and car dashboards far better than a thin card, so tenants and staff ask for fewer replacements.

Rated from -40℃ to 75℃

The operating range covers outdoor gate readers in cold winters and fobs left in a hot car in summer. With storage tolerance from -50℃ to 80℃, distributors can hold inventory in a standard warehouse in any season.

A deliberate 2 to 5 cm read distance

Users have to present the fob on purpose, which helps prevent stray reads from fobs in nearby pockets at a busy entrance.

Project-Ready 125kHz Key Fobs for Residential, Office and Membership Access

Apartments and gated communities

Property managers give each household its own fixed-ID fob for lobby doors, gates and lifts. Bags of 50 make move-in batches quick to hand out, and colors help guards tell residents, contractors and staff apart.

01

Staff attendance

Factories and offices pair TK4100 fobs with 125kHz time clocks. Since the UID can't be edited, HR gets one permanent ID per employee.

02

Gyms, clubs and members

A keyring pass is harder to forget than a card. A custom color turns it into a branded member item at little extra cost.

03

Installer replacement stock

System integrators keep EM4100 fobs on the shelf for existing sites, adding users or replacing lost fobs without touching the installed 125kHz access control readers.

04

Adding users to an existing 125kHz system? Tell us the chip type and quantity you need, and the Syntek EM4100 key fob supplier team will quote a matching version.

Send Your Fob Requirements

Custom EM4100 and TK4100 Key Fobs with Your Colors, Chips and Housing

Building a private-label access line or matching a client's brand colors? Start with the shell. Black, yellow, white, grey and purple are standard, and other colors can be made to order.

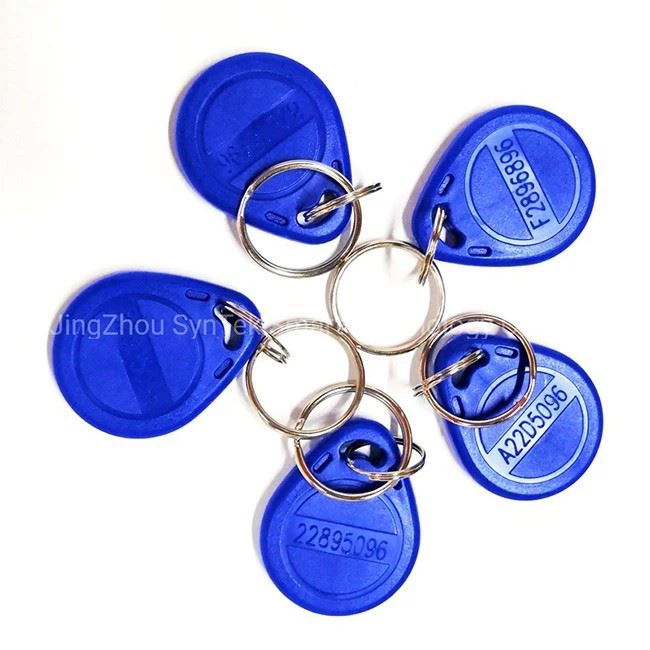

The fob shown in the product photos also carries a printed ID number, which helps your team match each fob to its record at a glance.

For the full scope of branding and packaging options, see our OEM/ODM service.

Custom color range of OEM proximity key fobs
Assorted RFID key fob housing shapes from the Syntek mold workshop

Need a different shape? Our in-house mold workshop has produced a wide range of fob housings, so a new style for your product line does not have to start from zero.

Browse the full ABS RFID keyfob range, or choose leather RFID keyfobs for a premium feel.

Other chips available in this fob style

Frequency RF Interface Chip Model
LF 125kHz   Read only: TK4100, EM4100
Read & write: T5577, EM4305, Hitag, etc.
HF 13.56MHz ISO14443A MIFARE Classic EV1 1K, MIFARE Ultralight EV1, MIFARE DESFire EV1 2K/4K/8K, NTAG213/215/216, MIFARE Plus, Fudan F08 1K, ISSI 1K, etc.
HF 13.56MHz ISO15693 ICODE SLI, TOPAZ512, etc.
UHF 860–960MHz ISO18000-6C Alien H3/H4, Monza 4/5/6, NXP UCODE, etc.

Need one fob that works on both 125kHz and 13.56MHz readers? Take a look at our dual frequency entry keyfob.



Talk to Syntek's OEM Key Fob Team



Factory-Tested RFID Key Fobs Checked by Hand and by Program Before Packing

RFID key fob production process with manual QC and program QC

Every order goes through two quality checks before packing: a manual inspection and a program check. Both sit in the same production line that handles chip placement and injection molding, so problems are caught before the fobs reach your warehouse.

You can also verify the results yourself. Free stock samples let your engineers confirm the chip type and the 2–5 cm read range on your own readers. If your tender requires specific compliance documents, list them in your inquiry and we will confirm what can be supplied with your order.

Bulk-Order RFID Keychain Tags Packed 2,000 to a Carton for Easy Freight

Inner pack 50 pcs per bag
Carton 2,000 pcs · 37 × 29 × 20 cm · GW 10 kg
Express DHL / UPS / FedEx / TNT, about 5–7 days
Sea freight About 30–40 days
product-1348-1167
50 pcs per bag
Export carton holding 2,000 RFID key fobs
2,000 pcs per carton

At 10 kg per 2,000 fobs, a 10,000-piece order fits in five cartons. That keeps express freight affordable for urgent jobs, while bigger repeat orders can travel by sea to lower your landed cost.



MOQ, Lead Time and Payment Terms for 125kHz Key Fob Orders

Samples Free stock samples, 1–5 days
Bulk orders 7–15 days
Large orders Schedule confirmed per order
Order quantity Quoted by quantity, packed in multiples of 50 pcs
Payment PayPal, Western Union, T/T bank transfer, Alibaba Trade Assurance (payment charges paid by buyer)

Production time is flexible. If your installation date is fixed, include it in your inquiry and we will plan production around it.



Syntek Is Your Factory-Direct RFID Key Fob Manufacturer and Supplier

Syntek is a dedicated RFID key fob manufacturer and OEM supplier in China, producing 125kHz, 13.56MHz and UHF fobs in its own factory. Buying from the production line means you deal directly with the people who mold, encode and pack your order.

The same team also makes 125kHz clamshell proximity cards, RFID wristbands, RFID tags and TM iButton tags. If your project mixes fobs with cards or wristbands, one supplier can cover the whole order.

Syntek RFID key fob factory, production equipment and QC staff

FACTORY-DIRECT PRICING

No trading layer between you and production, plus free stock samples to test first.

FULL CHIP RANGE

LF, HF and UHF chips in fob form, from TK4100 to MIFARE DESFire EV1 and NXP UCODE.

FLEXIBLE SCHEDULING

7–15 day bulk production, adjusted to your project dates.

Get Wholesale Pricing from Syntek



Procurement FAQs About 125kHz EM4100 TK4100 Key Fobs

Q: What is the difference between an EM4100 and a TK4100 key fob?

A: Both are 125kHz chips with 64-bit read-only memory, and both come in the same 35 × 28 × 7 mm ABS housing. Choose the one your reader or tender specification names. Syntek, as an EM4100 key fob supplier, ships either version from the same production line.

Q: Can a TK4100 proximity fob be rewritten or copied to?

A: No. The unique ID is fixed and not writable, so the fob cannot be reprogrammed. If you need writable fobs, choose T5577, EM4305 or Hitag chips in an identical shell.

Q: How long does a wholesale RFID key fob order take?

A: Stock samples ship in 1–5 days and bulk orders are produced in 7–15 days. Express delivery takes about 5–7 days and sea freight about 30–40 days. Syntek, as an RFID key fob supplier with flexible production, can schedule large orders around your installation date.

Q: Can I order custom-color access control key fobs?

A: Yes. Black, yellow, white, grey and purple are standard, and other colors are made to order. Syntek, as an OEM key fob factory with its own mold workshop, can also offer other housing shapes.

Q: How are bulk orders packed?

A: Fobs are packed 50 pcs per bag and 2,000 pcs per carton. Each carton measures 37 × 29 × 20 cm and weighs 10 kg gross.

Q: Which payment methods do you accept?

A: We accept PayPal, Western Union, T/T bank transfer and Alibaba Trade Assurance. Payment charges are paid by the buyer.

Request a Quote from Syntek for Wholesale 125kHz Key Fobs



Tell us your chip, quantity and delivery date. The more detail you share, the more accurate your first quote will be.



What to include

Chip type, quantity, color or logo, target delivery date and your reader model

Free stock sample

Shipped in 1–5 days so you can test before ordering
