hf ic reader

Product Introduction:

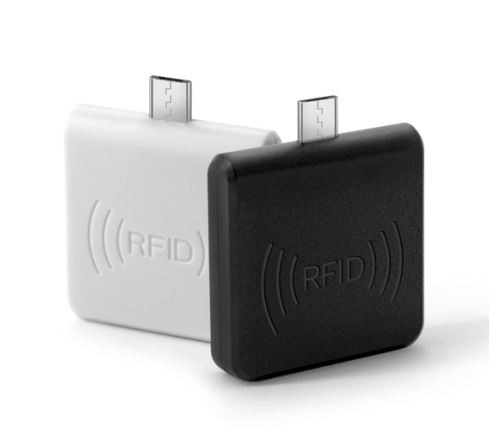

R65C HF IC Reader is an contactless Android Mini-reader, can use the reader micro USB port connect the device of Android system,  easy to carry and easy to use.



R65C is an ISO 14443A protocol and contactless Android Mini-reader, Using the reader micro USB port connect the device of Android system, Free pluggable without power. Beautifully design, it's not only simple aspect, but also stable and reliable data.



On the other hand, it can connect with computer by a OTG cable, It's more easier to transformation between Android phone and Computer (Micro-USB port tun into USB port). Widely used for RFID Radio Frequency Identification system and project, Such as Automated parking management system, Personal identification, Access controller, Production Access control, etc



Application:

Parking management system, Personal identification, Access controller, Production Access control, etc.



Features:

1.Plug and play - It can be directly connected to the mobile phone card reader, no drive or transfer cord required.

2.Exquisite craftsmanship, scratch-resistant and durable - The is environmentally friendly frosted, and the outer casing is made of PVC material and is scratch-resistant and durable.

3.Stable performance and strong compatibility - It is suitable for (for Samsung, for , for VIVO, for ), for system: support for WinXP/Win7/Win10, etc (need to be transferred via OTG line).

4.It can read and transfer data stably and quickly - High transmission efficiency with Micro USB connector and non-contact card reading.

5.Built-in buzzer design, sound up to 20db, effective prompt.

6.The exquisite and compact design makes it convenient to carry and use.



Product Parameters:

Frequency	13.56Mhz
Support cards	MF(S50/S70/Ntag203 etc.ect. )
Output format	10 digit dec+Enter (Defoult output format)
Size	35mm×35mm×7mm
Colour	White or Black
Operating Distance	0mm-100mm(related to the card and the environment)
Service Temperature	-10℃ ~ +70℃
Store Temperature	-20℃ ~ +80℃
Working humidity	<90%
Read time	<200ms
Read interval	＜0.5S
Material of reader	ABS
Operating System	Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android
Indicators	Double color LED (blue & green)and Buzzer "Blue"means standby,"Green" means reader success



Method of installation and use:

Connect with phone/pad of Android system through Micro-USB interface directly. When the reader into the self-inspection. And the same time, LED turn into Blue means standby.

Open the output software of phone/pad (such as memo or SMS editor),.

The mouse in Message editor or memo clicking.

Put tag on the top of reader, the software will output a data(card number) of the tag. When reading the tag, LED light change from Blue to green.



Ⅲ Precautions:

Do not install the reader on the magnetic objects and metal objects, they will seriously affect the RF signal.

If after reading, the tag is still in the induction zone, the RF reader will not send data and without any hints.

With OTG function if used in mobile phones directly.



Ⅳ Common problems:

Operation without feedback: Please check whether the interface plugged in, whether the tag is a valid or whether another RF tag is within the reading range.

Data error: Please check Whether the mouse is moved, whether the reader is in a critical state and whether the cable length is too long.



Notes of this HF IC Reader:



1. Android system requirements such as mobile phones: with OTG function



2. If the reading distance of the card reader is too long, it will cause the card reading instability or failure, and avoid reading the card in a critical state (the distance from which the card can be read). At the same time, two adjacent card readers will interfere with each other.



3. There are many factors that affect the reading distance. Different protocols, different antenna designs, surrounding environments (mainly metal objects) and different cards will affect the actual reading distance.



4. The way to read the card, it is recommended to use the card to face the card reader and approach it naturally. The card reading method of using the card to quickly swipe from the side is not advisable, and the success of the card swipe is not guaranteed.



5. There is no response when swiping the card: whether the interface is inserted properly; whether the radio frequency card is the corresponding IC card; whether the radio frequency card is damaged; whether another radio frequency card is within the reading range.



Package:

200pcs/box

Carton Size:54*27*42cm

GW:8KG



Company Profile:

JingZhou Syntek Smart Technology Co.,Ltd established in 2006,

A high-tech enterprise specializing in the R&D, production, sales and service of various smart cards and HF IC Reader. It is sold worldwide and widely used in transportation, schools, property communities, security systems, access control systems, and attendance systems.

With rich experience and customer resources, its technological leadership ranks first among domestic peers, which ensures product quality and product stability, and has won unanimous praise from new and old customers at home and abroad



FAQ:

1.Q: How can we be sure your products are of superior quality as you promised?

A: We believe that the quality is the soul of an enterprise.We always put quality as the first consideration.

And we have confidence in the quality of our products and in the deal we will make.No one can match us so far as quality is concerned.



2.Q: Then how do you guarantee the quality ?

A: All products have to go through three checks in the whole process.

All products have to pass strict inspection before they go out.



3.Q: Why should we buy from your company ?

A: Our quality is far beyond comparison.Besides,the market is advancing.



4.Q:Can you give us firm offer ASAP ?

A:Sure, we can send you quotation within 24 hours.



5.Q:How long does your offer remain valid ?

A:Normally our offer remains open for 2 weeks.

And all the quotations are subjected to our final confirmation.
