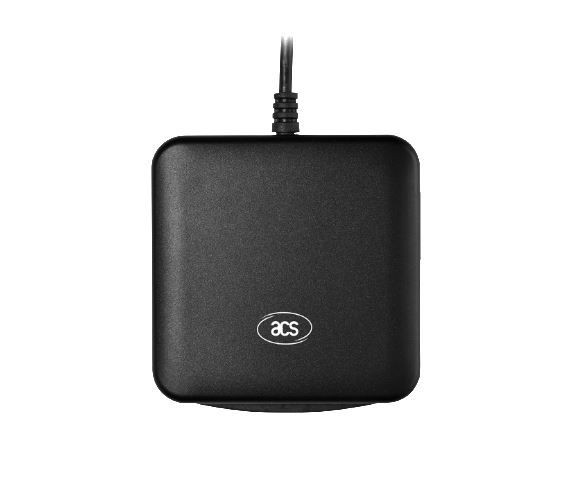

Smart Contact Card Reader
Size:72.2mm(L)*69mm(W)*14mm(H)
Card connector:Contact mode,type C
Color:Black
Product Introduction:
The smart contact card reader is a high-tech device widely used in finance, transportation, healthcare, access control, and other fields. It is specifically designed for reading and writing contactless smart card data, characterized by its efficiency, stability, and security. This product supports a variety of international standard card protocols (such as ISO7816), has strong compatibility, and is easy to integrate into various systems.
Our smart contact card reader utilizes leading read/write technology, is compatible with different operating systems and development environments, and is an ideal choice for modern data management and identity verification.
Product Features:
1. Multi-protocol Compatibility:
- Supports ISO7816 standard contact smart cards and universal CPU cards.
- Compatible with a variety of encryption algorithms, including AES, RSA, etc., ensuring secure data transmission.
2. High-performance Data Processing:
- Read and write speeds up to 424 kbps, supporting the transfer of large volumes of data.
- Efficient error detection and correction mechanisms to ensure data integrity.
3. Superior Hardware Design:
- Compact design, small in size, suitable for desktop devices and embedded applications.
- Durable slot design, supporting high-frequency insertion and removal (over 100,000 times).
4. Easy Integration and Operation:
- Provides a rich set of development interfaces (APIs) and secondary development documentation.
- Plug-and-play, compatible with multiple operating systems including Windows, Linux, MacOS.
5. High Level of Security:
- Built-in tamper-proof mechanisms to prevent unauthorized reading and data leakage.
- Supports hardware encryption modules, offering two-factor authentication capabilities.
Product Working Principle:
The smart contact card reader communicates with smart cards through its built-in microprocessor. When a smart card is inserted into the reader, the reader establishes a connection with the card via contact points and exchanges data according to the card's protocol (such as T=0 or T=1). The reader then transmits the card data to the connected device, such as a computer or POS terminal, where the software on the device processes the data according to the application requirements.
Product Usage and Maintenance:
1. Usage Steps:
- Install Drivers
- Ensure device compatibility with the operating system, download the appropriate version of the drivers from the manual or official website, and install them.
- Connect the Device
- Use the USB interface or other custom interfaces to connect to the host device, ensuring a stable connection.
- Operate the Card
- Gently insert the contact card into the card reader slot, and once you hear a prompt tone, you can proceed with data read/write operations.
- Development and Integration
- Use the provided SDK or API documentation to develop customized applications based on business needs.
2. Maintenance and Care:
- Regularly clean the device slots to prevent dust and debris from affecting card contact performance.
- Avoid exposing the card reader to high temperatures and humidity for extended periods to prolong its lifespan.
- Handle cards gently when inserting and removing them to avoid damaging the hardware with excessive force.
- If the device malfunctions, contact professional after-sales service and do not attempt to disassemble or repair it yourself.
Product Parameters:
| Dimensions(mm) | 72.2mm(L)*69mm(W)*14mm(H) |
| Weight(g) | 56g |
| Protocol | USB CCID |
| Connector Type | Standard Type C |
| Power Sourse | From USB port |
| Speed | USB Full Speed(12 Mbps) |
| Cable Length | 1.5m,Fixed |
| Number of Slots | Full-sized Card Slot |
| Standard | ISO7816 Parts1-3,Class A,B,C(5V,3V,1.8V) |
| Protocol | T=0,T=1;Memory Card Support |
| Others | CAC,PIV,SIPRNET,J-LIS Smart Cards |
| Certifications/Compliance |
EN 60950/IEC 60950, ISO 7816 ,USB Full Speed EMV Level 1(Contact), PC/SC, CCID,CE,FCC,WEEE,RoHS 2,REACH,FIPS201(USA) TAA(USA), J-LIS(Japan),VCCI(Japan), PBOC,Microsoft WHQL |
| Device Driver Operating System Support |
Windows, Linux, MAC OS, Solaris, Android |
Technical Specifications:
Package:
Company Introduction:
Our company is committed to providing high-quality smart card solutions, with years of industry experience and technological accumulation. Our products and services are available globally and have earned the trust of our customers. We adhere to a customer-centric approach and continuously innovate to meet the market's demand for secure and convenient smart card solutions. Our product line covers a wide range of applications, from personal identity verification to enterprise-level secure payments.
Our Certificates
FAQ：
1. Q: What types of smart cards does the ACR39U-U1 support?
A: The ACR39U-U1 supports ISO 7816 Class A, B, and C cards, as well as various special-purpose smart cards such as CAC, SIPRNET, and J-LIS cards.
2. Q: Is additional software required to use the ACR39U-U1?
A: No, the ACR39U-U1 supports plug-and-play functionality and is compatible with PC/SC and CT-API, allowing it to be automatically recognized and used by most operating systems.
3. Q: How is the compatibility of the smart contact card reader?
A: The smart contact card reader is compatible with a variety of operating systems, including Windows, Linux, and Android™ versions 3.1 and higher.
4. Q: What is the security level of the smart contact card reader?
A: The smart contact card reader has passed EMV™ Level 1 (Contact) and People's Bank of China (PBOC) certifications, ensuring the security of transactions.
5. Q: What is the warranty policy for the smart contact card reader?
A: We offer a one-year limited warranty service. For specific terms, please refer to the product manual or contact our customer service.
